The biggest headache in the CO2 beverage industry is downtime. The good news is, it can be prevented a vast majority of the time by implementing a smarter system.

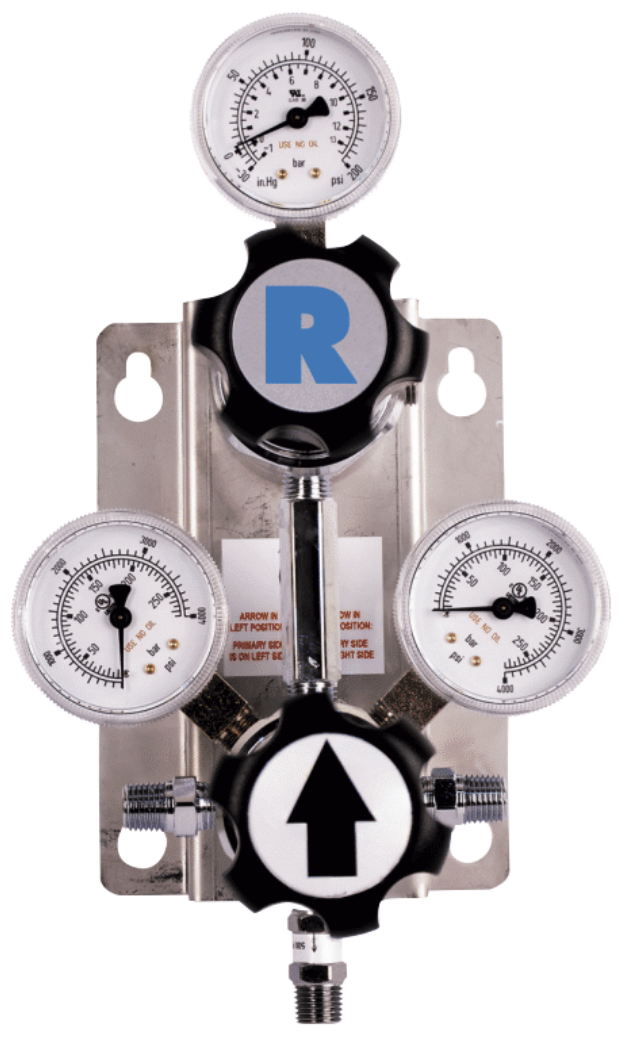

The Ratermann Semi-Automatic Manifold Switchover keeps your CO2 flowing by quickly switching from full to empty cylinders. This keeps your production going strong while avoiding delivery delays by automatically switching from the primary cylinder bank to the reserve bank. The user can then reset the primary bank just by turning a knob, and manual adjustment of the individual regulators is not required.
Ratermann’s switchover manifolds come equipped to manage from two to six cylinders, providing flexibility for a range of system capacities. Plus, manifolds are compatible with a range of gas service types, from CO2 to hydrogen to medical mixtures, oxygen, inert and more.
Key Features:
- Wall mounting panel
- Maximum inlet pressure of 3,000 PSIG
- Delivery pressure from 0 to 125 PSIG
- Inlet/Outlet ¼ NPT
- Includes Post Sintered stainless steel braided pigtails (other hose options are available)
- CGA Nut and Nipples with Check Valves
- Optional accessory: High-pressure alarm system, 3,000 PSIG
